Milani ( Vitari ) Wire Straightening & Cutting Machines




TAGS Used Schlatter, Used Schlatter mesh welder, Second user Schlatter mesh welder, Second hand Schlatter mesh welder, FISCHER Instruments, VITARI spare parts, MILANI s.r.l. , Aim wire forming
Merlin Control Systems are pleased to announce that we have been awarded the Sole UK & Ireland agency for the superb range of wire straightening and cutting machines from Milani s.r.l. of Italy.

Milani have been producing wire machinery since 1986 and as well as offering spare parts for all Vitari Straightening and cutting machines, they have recently developed their own range of Straightening and Cutting machines. All machines feature the following benefits:

  • Quick Change Cutting Bush
  • Optical Measuring device with direct input into control panel
  • Siemens motors and control gear
  • Can operated cutting lever syncronised with discharge unit for even wire stacks
  • Soundproofed to comply with the latest CE Regulations

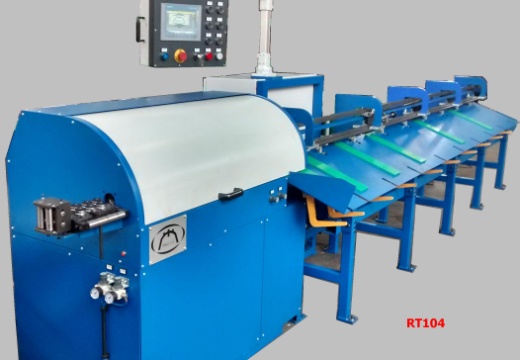

Model RT104:

Wire Capability:1.0 - 4.0mm R<800N/mm˛
1.0 - 3.5mm R< 1200 N/mm˛
1.2 - 3.0mm R>1200 N/mm˛
Galvanised Wire:1.0 - 3.5mm
Wire Feed Speed:20-120m/min (Electronically variable)
Tolerance:+/- 0.2mm with motorised payoff
Power:6.2kW Spinner Motor
2.0kW Cutter Motor
Options:include motorised payoff, static payoff,
Collecting benches, 7 roll straighteners

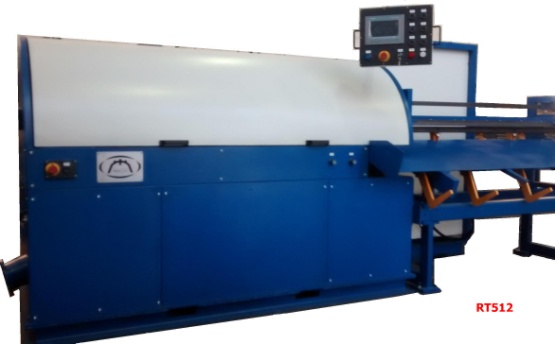

Model RT512:

Wire Capability:5.0 -12.0mm R<800N/mm˛
5.0 - 10.0mm R< 1200 N/mm˛
5.0 - 9.0mm R>1200 N/mm˛
Cold Ribbed & Galv. Wire5.0 - 11.0mm
Hot Ribbed Wire:5.0 - 10.0mm
Wire Feed Speed:20-160m/min (Electronically variable)
Tolerance:+/- 0.2mm with motorised payoff
Power:22.0kW Spinner Motor
7.5kW Wire Feed Motor
6.0kW Cutter Motor
Options:include motorised payoff, static payoff,
Collecting benches,

New machines, VITARI spare parts from :- MILANI s.r.l. ( designed in association with S. Mario Vitari )
